Magnetic rotor assemblies are among the most vital components in today’s most advanced machines. They form the heart of motors and generators, directly responsible for converting electrical energy into mechanical power or vice versa. Without these assemblies, electric vehicles, wind turbines, industrial robots, and countless other technologies would not function as efficiently as they do today.
Interest in magnetic rotor assemblies has grown rapidly in recent years. Engineers, manufacturers, and even procurement specialists are searching for reliable information about how they work, what types are available, where they are used, and how prices are evolving. With industries racing toward electrification and renewable energy, magnetic rotor assemblies have become a hot topic of innovation and strategy.
This guide explores everything you need to know. It explains what a magnetic rotor assembly is, outlines the most important applications, breaks down different types, provides practical advice for purchasing, and examines the 2025 price trends shaping the global market. By the end, you’ll have a clear understanding of how these assemblies fit into your needs.
1. What is a magnetic rotor assembly?
A magnetic rotor assembly is the rotating part of a motor or generator that creates motion using magnetic forces. It typically includes a shaft, a rotor core made of special magnetic steel, and either permanent magnets or windings that generate a magnetic field. As the rotor spins, it interacts with the stator to create mechanical torque or to produce electricity.
The design of a rotor assembly is more complex than it first appears. Engineers must carefully balance the rotor so that it can spin smoothly at high speeds without vibration. Even tiny imperfections in weight distribution or magnet alignment can cause noise, energy loss, or eventual mechanical failure.
Magnetic rotors are designed to withstand extreme stresses. High-speed motors, for example, subject rotors to centrifugal forces that can crack or dislodge magnets if the design is weak. For this reason, manufacturers use advanced bonding techniques, protective sleeves, and precise machining to keep magnets secure even under heavy load.
Heat is another challenge in rotor design. Permanent magnets can lose their magnetic strength at elevated temperatures, a process known as demagnetization. To prevent this, manufacturers choose magnet grades suited to high-heat environments and design cooling systems to manage temperature inside the motor. These considerations are especially critical in electric vehicle motors and aerospace applications.
The materials used in the rotor also play an important role. Electrical steels with low losses are commonly laminated to reduce unwanted heating caused by eddy currents. High-performance designs may use exotic alloys or magnetic stainless steels to achieve the right balance of efficiency, durability, and weight.
.
2. Main applications of magnetic rotor assemblies
Magnetic rotor assemblies are used across a wide range of industries, each with its own unique requirements. From transportation to renewable energy and from heavy industry to consumer electronics, the versatility of these components makes them indispensable. To understand their importance more clearly, it helps to look at the major fields where they play a central role, starting with electric vehicles.
Electric Vehicles
One of the most significant uses of magnetic rotor assemblies is in electric vehicles. Inside the traction motor, the rotor converts electrical input into the torque that propels the car forward. Drivers expect smooth acceleration, high efficiency, and quiet operation, all of which depend heavily on rotor performance. As EV adoption grows, demand for reliable rotor assemblies has skyrocketed.
In addition, the design of EV rotors must support long lifespans. Motors may need to last for hundreds of thousands of kilometers without failure. This requires high-quality magnets, robust rotor cores, and secure retention systems.
Renewable Energy Systems
Wind turbines also rely on magnetic rotor assemblies, but in a very different way. Instead of driving wheels, these rotors help convert the slow rotation of blades into electrical energy. They must deliver high torque at low speeds, which means large-diameter rotors with powerful magnetic fields. The reliability of these assemblies is critical since wind turbines often operate in harsh environments for decades.
Hydroelectric generators use similar principles. Rotors in hydro systems are massive, built to spin slowly but generate large amounts of electricity. Because downtime is costly, these assemblies are designed for maximum durability and ease of maintenance.
Industrial Automation
Factories, assembly lines, and robotic systems are powered by electric motors that contain magnetic rotor assemblies. In these applications, precision is key. A small deviation in torque or speed can disrupt a production process. Engineers choose rotors that balance performance, energy efficiency, and cost while ensuring machines can run continuously with minimal downtime.
Pumps, compressors, and conveyors also rely on robust rotor assemblies. The ability to withstand constant use, high loads, and sometimes harsh environments makes rotor reliability a critical factor in industrial settings.
Aerospace and Defense
In aerospace, rotor assemblies must meet stricter requirements than almost any other sector. They are used in actuators, auxiliary power units, drones, and control systems where failure is not an option. Lightweight materials, vibration resistance, and extreme durability are essential design factors. Aerospace rotors also undergo more rigorous testing and certification than standard industrial units.
Military applications often push rotor technology even further. Motors for defense systems may need to perform under extreme shock, temperature swings, or stealth requirements. In these cases, rotor design often involves advanced materials and innovative geometries.
Consumer Electronics
At the other end of the scale, magnetic rotor assemblies are used in much smaller devices. Cooling fans, drones, audio equipment, and handheld tools all contain miniature rotors. Here, the focus is on cost, compactness, quiet operation, and energy savings. While these rotors are less complex than those in EVs or turbines, they are produced in much larger volumes.
Everyday products, from hairdryers to laptops, depend on reliable miniature rotor assemblies. Though less visible to consumers, they remain essential to product performance and user experience.

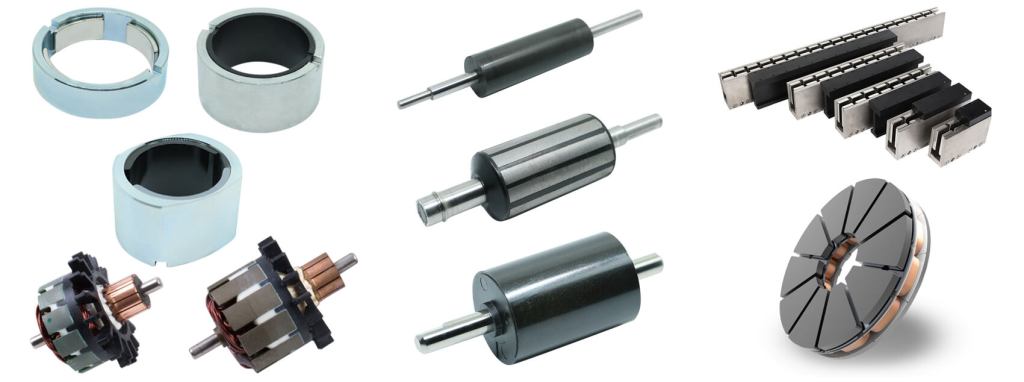

3. Types of magnetic rotor assemblies
Magnetic rotor assemblies are not all built the same. Engineers select different rotor designs depending on the application, the desired efficiency, and the available materials. Among the many options, permanent magnet rotors stand out as the most widely recognized and commonly used type.

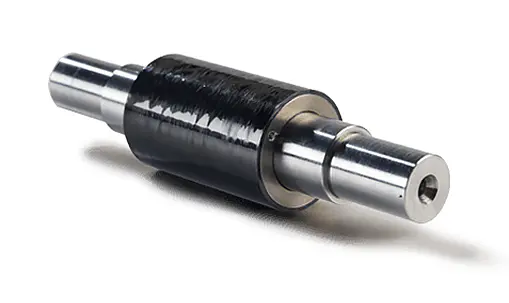

Permanent Magnet Rotors
Permanent magnet rotors use strong magnets, often made from neodymium or other rare-earth materials, to create the necessary magnetic field. These rotors are valued for their high power density and efficiency, making them a common choice in EVs and renewable energy applications. They can produce strong torque even at low speeds, which is critical for applications like wind power.
However, permanent magnet rotors come with challenges. The reliance on rare-earth materials makes them expensive and vulnerable to supply shortages. They also risk demagnetization if they become too hot, requiring careful cooling systems. Despite these issues, they remain the most widely used rotor type in high-performance motors.
Wound Field Rotors
Instead of permanent magnets, wound field rotors create a magnetic field using copper coils supplied with current. This design provides more flexibility since the magnetic field strength can be adjusted electronically. Wound field rotors are often used in applications where precise control is needed, such as large industrial generators.
Their main drawback is size and efficiency. Because they require a power source to energize the coils, they are less compact and less efficient than permanent magnet designs. However, they do not rely on rare-earth materials, which makes them attractive in regions where magnet supply is uncertain.
Hybrid Rotor Assemblies
Hybrid designs combine permanent magnets with wound coils to achieve a balance between efficiency and controllability. These systems allow engineers to reduce the amount of rare-earth material required while still maintaining high performance. Hybrids are becoming more common as industries search for ways to reduce dependency on expensive materials.
Hybrid rotors are more complex to design and manufacture. They require careful integration of magnets and coils, as well as more advanced electronics to manage them. Despite this, they are viewed as an important direction for the future of motor technology.
Specialized Designs

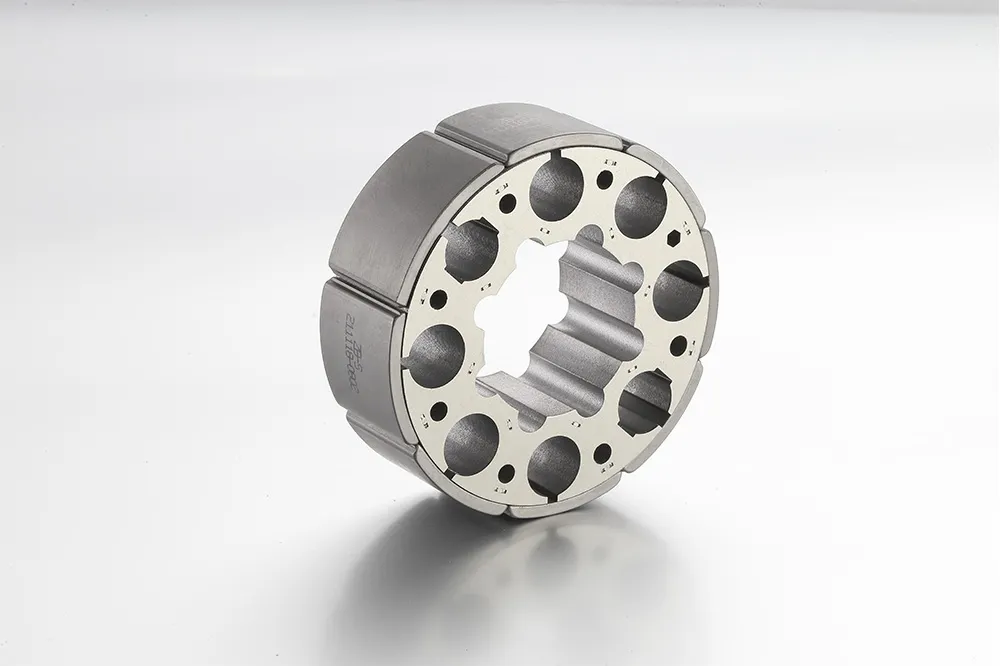

Beyond the main categories, there are many specialized rotor configurations. Surface-mounted magnet rotors place magnets directly on the rotor surface, while interior magnet rotors embed them inside the core. Each approach affects torque production, efficiency, and mechanical strength differently. Other innovations include claw pole rotors, axial flux designs, and segmented rotor structures.
The choice of design depends entirely on the application. Engineers must weigh performance, size, cost, and material availability before deciding which rotor type best suits their needs.
4. How to Buy Magnetic Rotor Assemblies
Purchasing a magnetic rotor assembly is not just about finding the lowest price. It is about securing a part that meets performance requirements, lasts over the product’s lifetime, and delivers efficiency. To make the right decision, buyers need to evaluate several critical factors.
The first step is defining performance requirements clearly. What torque and speed are needed? What efficiency level is acceptable? What temperature range will the rotor face? Without clear specifications, it is easy to choose a rotor that performs well in theory but fails in practice.
Material considerations are also vital. If permanent magnets are chosen, buyers must understand the grade of magnet and its temperature resistance. If wound field or hybrid designs are being considered, the trade-offs in efficiency and size should be weighed carefully. It is also wise to ask suppliers how they secure their raw material supply, as this affects both cost and delivery timelines.
Manufacturing precision should not be overlooked. Rotor assemblies must be balanced and machined to tight tolerances. Buyers should request test data, inspection reports, and details of quality control systems. Even a minor imbalance can cause vibration and shorten the life of bearings and other components.
Another important factor is supplier reputation. Established manufacturers with proven track records are often more reliable partners. Location also matters. Local suppliers may offer faster delivery, while global suppliers can sometimes provide lower costs due to scale. The choice depends on project priorities.
5. Price trend analysis of magnetic rotor components in 2025
The pricing of magnetic rotor assemblies in 2025 is shaped by a mix of global economic factors, raw material markets, and industry demand. Understanding these trends helps businesses budget more accurately and plan long-term sourcing strategies.
One major influence is the price of rare-earth materials. Neodymium, dysprosium, and similar elements are critical for permanent magnets, yet their supply is concentrated in a few countries. Political shifts, environmental regulations, and global trade tensions have made their prices volatile. This volatility directly impacts rotor assembly costs.
Steel and copper are also critical materials. Rising energy costs and supply chain challenges have pushed up prices in the metals industry. Since rotor cores rely heavily on specialized steels and wound designs require copper, these trends feed into overall rotor pricing.
On the other hand, economies of scale are helping to reduce some costs. As electric vehicle and renewable energy industries grow, manufacturers are producing larger volumes of rotors. Higher production volumes allow factories to optimize processes and reduce per-unit costs, although this effect is sometimes canceled out by raw material shortages.
Another trend is the rise of innovative designs that use fewer magnets. Engineers are developing rotors with reduced rare-earth content, hybrids, and alternative materials. While these designs may cost more initially due to complexity, they help stabilize long-term costs by reducing dependency on expensive resources.
Regional differences in manufacturing also play a role. Countries with lower labor costs and easier access to raw materials can often produce rotors more cheaply. However, import tariffs, transportation costs, and currency fluctuations can erase some of those savings for overseas buyers.
Finally, sustainability pressures are influencing prices. Recycling programs for magnets and eco-friendly manufacturing processes are being adopted, but these changes often increase short-term production costs. Over time, however, they may help stabilize pricing and reduce reliance on virgin raw materials.
Overall, 2025 is a year of mixed trends. Costs are rising for some components, but efficiencies and innovations are helping balance the market. Buyers who monitor both raw material markets and new design developments will be in the best position to secure favorable prices.
Conclusion
Magnetic rotor assemblies are the backbone of modern motors and generators. From cars to wind turbines to household appliances, they make electrification possible. Understanding what they are, where they are used, and how they are evolving is essential for engineers, buyers, and manufacturers alike.
In 2025, the market is dynamic. Rising material costs, strong demand from EVs and renewables, and new design innovations are reshaping the industry. Buyers who take time to evaluate suppliers carefully, consider total cost of ownership, and keep an eye on future price trends will make smarter, longer-lasting investments.
Whether you are designing cutting-edge technology or sourcing components for industrial machinery, magnetic rotor assemblies will remain central to your success. Their role in efficiency, performance, and sustainability makes them one of the most important technologies of the decade.
