In industries where powders and granules are processed, even the smallest impurity can cause big problems. A tiny iron fragment in flour could trigger a costly product recall, while a steel shaving in plastic granules might damage an expensive extruder. For businesses that rely on consistency, safety, and efficiency, keeping ferrous contaminants out of the production line is non-negotiable.
This is where magnetic powder drawers come into play. These compact yet powerful devices act as silent guardians, capturing metallic impurities before they can do any harm. Whether you are in food processing, pharmaceuticals, plastics, or recycling, understanding how magnetic powder drawers work and how to choose the right one can make a huge difference to your bottom line.
In this ultimate guide, we’ll break down everything you need to know about magnetic powder drawers: what they are, how they’re made, the different types available, their advantages, and where they are most often used. We’ll also explore the key quality indicators you should look for when buying one and offer insights on where to source them. By the end, you’ll have the knowledge you need to make informed decisions about this essential piece of equipment.

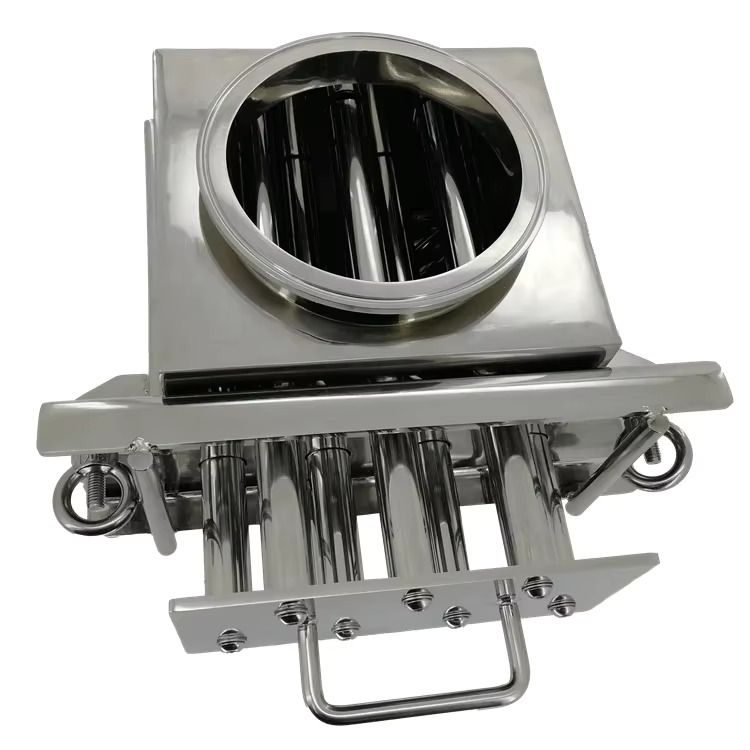

What is a Magnetic Powder Drawer?
A magnetic powder drawer is a specialized piece of equipment designed to remove ferrous contaminants from powdered or granular materials. These contaminants may include iron filings, nails, or even extremely fine metallic particles invisible to the naked eye. Left unchecked, they can compromise product quality, damage machinery, and in some industries, even pose health risks.
The drawer itself is constructed in a way that allows material to pass through a housing filled with magnetic rods. As the powder flows, ferrous contaminants are attracted to and captured by the magnets, while the purified material continues downstream. This simple yet highly effective mechanism ensures the consistency, purity, and safety of the final product.
What makes magnetic powder drawers indispensable is their versatility. They are widely used in industries ranging from food and pharmaceuticals to plastics, ceramics, and recycling. Wherever powders or granules are processed, the presence of metal contaminants is a possibility, and magnetic powder drawers provide a reliable safeguard against such risks.
How Are Magnetic Powder Drawers Made?
The manufacturing of a magnetic powder drawer begins with a stainless-steel housing. Most commonly, SS304 or SS316L is used because of their durability, corrosion resistance, and hygienic qualities. Stainless steel also allows the equipment to withstand harsh processing environments and makes cleaning easier, which is especially critical in industries governed by strict hygiene regulations.
Inside the housing, multiple layers of magnetic rods or tubes are installed. These rods may be made with ferrite magnets for standard use or rare-earth neodymium (NdFeB) magnets for high-intensity separation. The rods are arranged in staggered layers to maximize the chances of intercepting ferrous particles as the material passes through. This layered grid design is what makes the separation process so efficient.
Designers also consider the cleaning process when making these units. Manual-clean models are straightforward, but many modern drawers are equipped with easy-clean or even self-cleaning systems. In easy-clean models, the magnets are enclosed in removable sleeves that allow contaminants to be quickly stripped away. Self-cleaning versions take automation a step further, using pneumatic or mechanical systems to continuously clean the rods without halting production.
The combination of stainless-steel durability, high-performance magnets, and user-friendly cleaning features makes magnetic powder drawers a reliable solution in demanding industrial settings.
Types of Magnetic Powder Drawers
Although all magnetic powder drawers perform the same fundamental role, the specific type best suited to an operation depends on the scale of production, the nature of the materials, and the level of automation required. Understanding these types helps businesses make informed purchasing decisions.

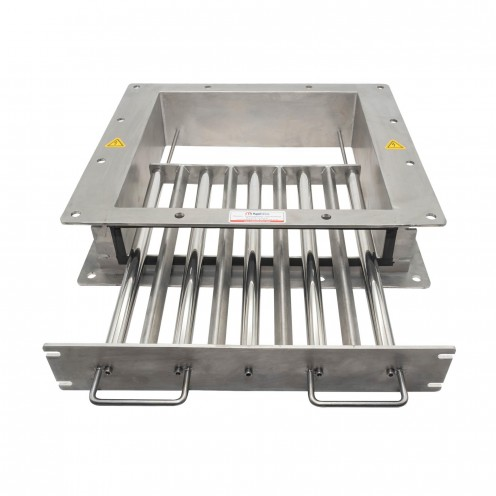

1. Manual-Clean Magnetic Powder Drawers
Manual-clean models are the simplest version available. Operators periodically remove the drawer from the housing and manually wipe or scrape the ferrous contaminants from the rods. While this process takes time, it is affordable and reliable, making manual-clean drawers a popular choice for small facilities or industries with limited contamination levels.

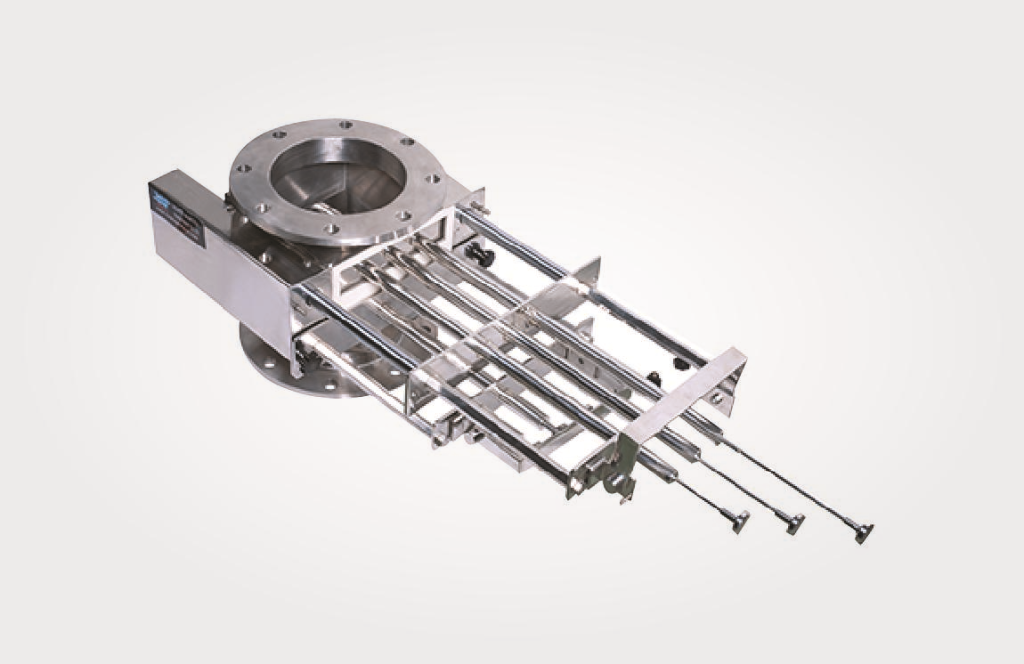

2. Easy-Clean Magnetic Powder Drawers
Easy-clean designs improve on the manual-clean approach by incorporating removable sleeves or covers around the magnetic rods. When cleaning is required, the operator simply pulls out the sleeves, causing the captured ferrous particles to slide off effortlessly.
This reduces labor, shortens downtime, and maintains higher levels of hygiene, which is particularly valuable in food, pharmaceutical, and chemical environments.

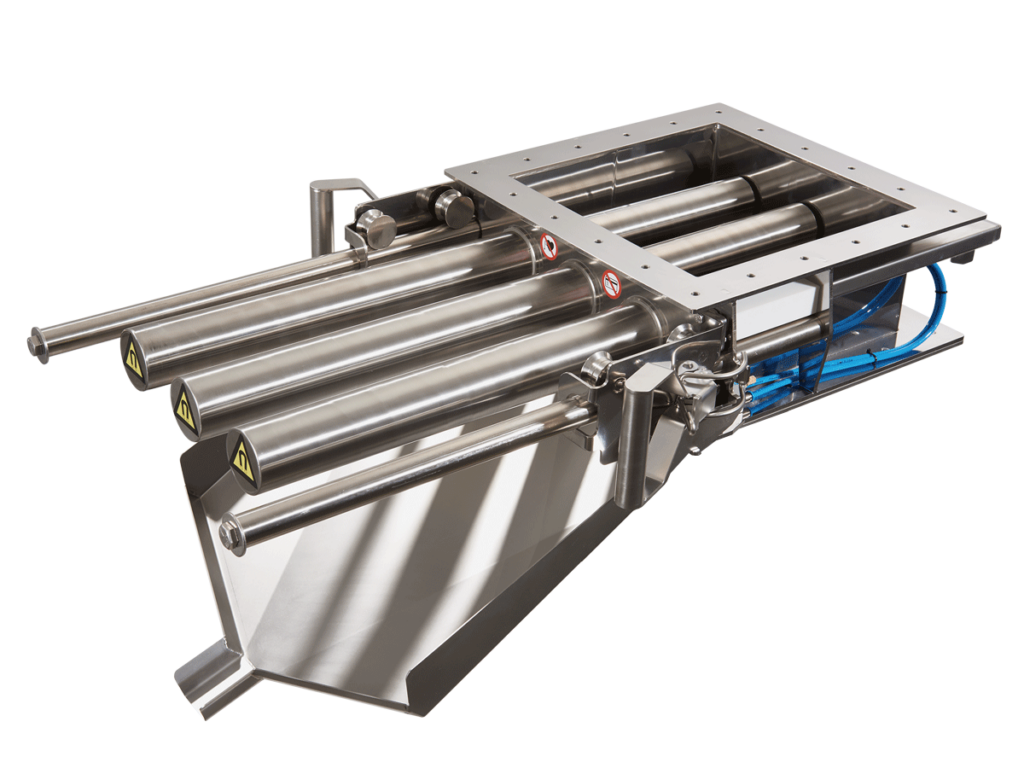

3. Self-Cleaning Magnetic Powder Drawers
Self-cleaning drawers take efficiency to the next level. These systems automatically remove contaminants using mechanical levers, air cylinders, or other automated processes. The biggest advantage is that the production line does not need to be stopped for cleaning. As a result, self-cleaning drawers are ideal for large-scale operations such as plastics extrusion or chemical processing where continuous production is essential.
4. Heavy-Duty and High-Intensity Drawers
For abrasive powders, sticky materials, or industries that require the removal of very fine ferrous particles, heavy-duty and high-intensity models are available. Heavy-duty units feature stronger housings and reinforced components to withstand challenging conditions.
High-intensity versions employ rare-earth magnets with magnetic field strengths exceeding 12,000 Gauss, ensuring even the smallest contaminants are captured. These designs are often used in mining, ceramics, and pigment production, where reliability under harsh conditions is critical.
What are the Advantages of Magnetic Powder Drawers?
Magnetic powder drawers offer a range of advantages that justify their use across multiple industries. Each benefit contributes to improved operational performance and long-term cost savings.
1. Improved Product Quality and Safety
The most important benefit is the assurance of product quality. By capturing even the finest metallic contaminants, magnetic powder drawers ensure that final products meet strict quality standards. In food and pharmaceuticals, where consumer health is at risk, this benefit is not only valuable but absolutely essential.
2. Protection of Expensive Equipment
Ferrous contaminants can severely damage downstream machinery such as grinders, extruders, or packaging equipment. By removing these particles early in the process, magnetic powder drawers extend equipment life, reduce repair costs, and minimize production downtime. This protective function translates into significant cost savings over time.
3. Operational Efficiency and Cost Savings
Magnetic powder drawers operate without the need for electricity, yet their impact on efficiency is profound. By minimizing breakdowns and reducing the risk of rejected batches, they help maintain continuous operations. Companies using these systems often see a rapid return on investment through lower maintenance costs and fewer production delays.
4. Versatility Across Materials and Industries
Another key advantage is adaptability. Magnetic powder drawers can be tailored in size, strength, and configuration to suit different materials. Whether working with food powders, plastic granules, or chemical compounds, businesses can find a model that fits seamlessly into their operations. This versatility makes them an attractive option for companies operating across diverse sectors.
Applications of Magnetic Powder Drawers
The versatility of magnetic powder drawers is reflected in their wide range of applications. From protecting consumer health to safeguarding expensive machinery, these devices play a critical role in numerous industries.
1. Food and Beverage Industry
In food production, product safety is paramount. Magnetic powder drawers are widely used in processing flour, sugar, spices, starch, and powdered dairy products. By capturing ferrous contaminants, they prevent consumer exposure to dangerous particles and help manufacturers comply with strict regulatory requirements. For companies in this sector, magnetic powder drawers are not just optional equipmentthey are essential for maintaining trust and avoiding costly recalls.
2. Pharmaceutical and Chemical Processing
In pharmaceuticals, even microscopic contamination can compromise the safety and efficacy of medicines. Magnetic powder drawers ensure that powders and fine chemicals remain uncontaminated, protecting both consumers and the company’s reputation. Their stainless-steel construction also supports rigorous sanitation procedures, which is vital in cleanroom environments.
3. Plastics and Polymer Manufacturing
Plastics and polymer industries use magnetic powder drawers to protect sensitive equipment such as extruders and injection molding machines. Metallic contaminants can cause defects in plastic products or even result in costly equipment breakdowns. By removing these particles, magnetic powder drawers maintain the integrity of both the machinery and the final product.
4. Ceramics, Pigments, and Minerals
The ceramics and pigment industries require high levels of consistency in texture and color. A single metallic contaminant can create flaws or discoloration in finished products. Heavy-duty magnetic powder drawers are used in these sectors to ensure raw materials are free of impurities, enabling manufacturers to produce consistent, high-quality goods.
5. Recycling and Environmental Industries
In recycling plants, magnetic powder drawers are used to separate metallic debris from powders and granules, improving recovery rates and ensuring the quality of recycled materials. They also play a role in environmental applications where contaminated powders must be processed safely before reuse. Their contribution supports sustainability by improving material recovery and reducing waste.
Important Indicators for Testing the Quality of Magnetic Powder Drawers
One of the most important indicators of quality is magnetic field strength, measured in Gauss. High-intensity magnets, often rated between 10,000 and 13,000 Gauss, are required for industries where fine contamination must be removed. Lower Gauss ratings may suffice for less demanding applications, but choosing the right strength is essential for effectiveness.
The arrangement of magnetic rods also plays a crucial role. Drawers with staggered, multi-layer grids provide more interception points, improving the chances of capturing contaminants. Build quality is another factor stainless-steel housings resist corrosion and abrasion, ensuring long service life even in harsh environments.
Ease of cleaning is equally important. Manual-clean models are simple but labor-intensive, while easy-clean and self-cleaning designs significantly reduce downtime. Finally, compatibility with existing production systems should not be overlooked. A well-designed magnetic powder drawer should integrate smoothly into hoppers, chutes, or pipelines without causing flow restrictions or requiring costly modifications.
Where to Import Magnetic Powder Drawers?
Sourcing magnetic powder drawers requires careful consideration of suppliers. China is a leading hub for advanced magnetic equipment, with many manufacturers offering self-cleaning and high-intensity models designed for large-scale industries. India is another strong market, known for providing cost-effective manual and easy-clean options that appeal to smaller or medium-sized businesses.
When choosing a supplier, companies should evaluate not only the cost but also the manufacturer’s reputation, the quality of stainless steel used, the Gauss rating of the magnets, and the level of after-sales support. Lead times, shipping costs, and the ability to meet local certification standards should also factor into the decision. Establishing a relationship with a reliable supplier ensures long-term consistency and responsive technical assistance.
Some suppliers specialize in industry-specific models, such as sanitary-grade versions for food and pharmaceuticals or abrasion-resistant units for ceramics and mining. By comparing options carefully, businesses can secure magnetic powder drawers that balance performance, durability, and price.
Final Thoughts and Next Steps
Magnetic powder drawers may not always attract attention in a production facility, but their role is vital. They safeguard products from contamination, protect machinery from damage, and help businesses comply with strict industry regulations. By understanding what they are, how they’re made, their types, advantages, and applications, decision-makers can make informed choices that add real value to their operations.
If you’re evaluating magnetic powder drawers for your business, focus on indicators like magnetic strength, design quality, ease of cleaning, and supplier reliability. These factors influence not only initial performance but also long-term efficiency and cost-effectiveness.
For more detailed solutions and tailored support in sourcing high-quality magnetic powder drawers, you can visit Newland Magnetics. Their industry expertise and product catalog provide valuable resources for businesses seeking dependable and effective magnetic separation solutions.
