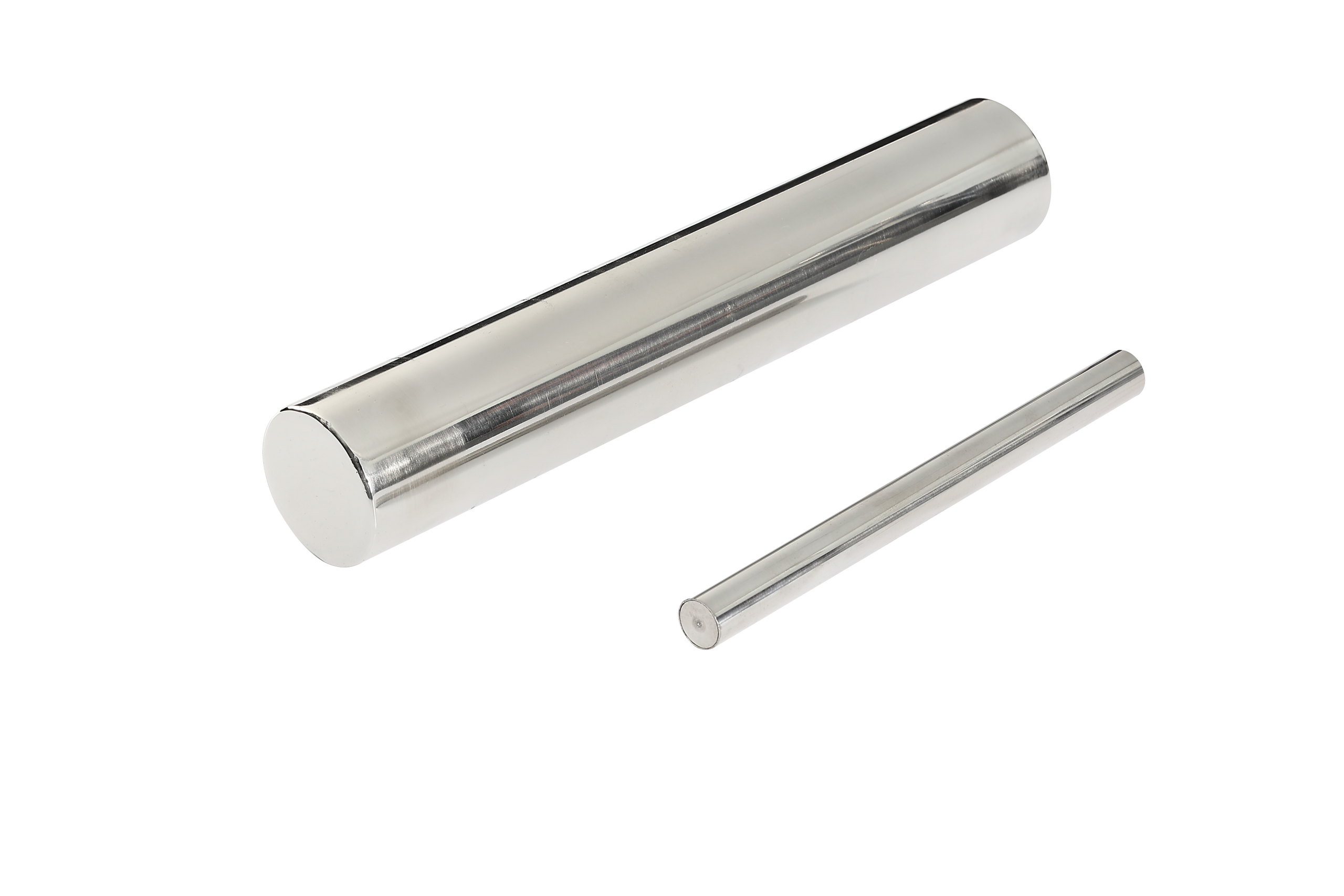

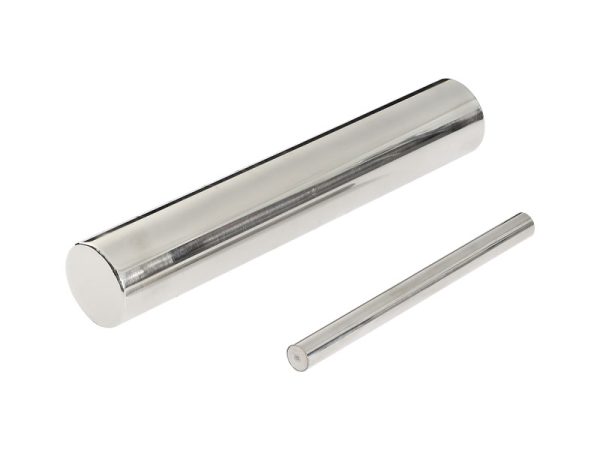

The magnet bar is composed of magnet and metal spacer alternately embedded in a stainless steel tube.
The magnetic peak force on bar surface can attract tiny iron impurities or weak magnetic impurities in the filtered medium, it can be installed through the screw hole at both ends, which is widely used in food, medical, chemical and other industries.
1. Screw or external thread installation method is alternative
2. Simple installation, long service life
3. Teflon, sandblasting and other surface treatments is optional.
| Item | Diameter | Surface Strength(Gs) | Tw (℃) | Length | Tube material |
| NEO-16 | 16 | 3000-8000 |
80℃ 100℃ —————————— 120℃ 150℃ 180℃ 200℃ |
| Regular: 304,316, 316L |
| NEO-18 | 18 | 3000-8000 | |||
| NEO-19 | 19 | 3000-10000 | |||
| NEO-22 | 22 | 3000-12000 | |||
| NEO-23 | 23 | 3000-12000 | |||
| NEO-25 | 25 | 3000-14000 | |||
| NEO-28 | 28 | 3000-14000 | |||
| NEO-30 | 30 | 3000-14000 | |||
| NEO-32 | 32 | 3000-14000 | |||
| NEO-38 | 38 | 3000-14000 | |||
| NEO-40 | 40 | 3000-14000 | |||
| NEO-42 | 42 | 3000-14000 | |||
| NEO-45 | 45 | 3000-14000 | |||
| NEO-50 | 50 | 3000-15000 | |||
| NEO-60 | 60 | 3000-15000 | |||
| NEO-63 | 63 | 3000-15000 | |||
| NEO-76 | 76 | 3000-15000 | |||
| NEO-80 | 80 | 3000-15000 | |||
| NEO-89 | 89 | 3000-15000 | |||
| NEO-102 | 102 | 3000-15000 | |||
| NEO-105 | 105 | 3000-15000 | |||
| NEO-108 | 108 | 3000-15000 |
Are you interested in a product, need a consultation or would like to have a quote? Please use the form below for any other inquiries.
We also support OEM/ODM, and we have strong R&D department to help your artwork or ideas implement.
