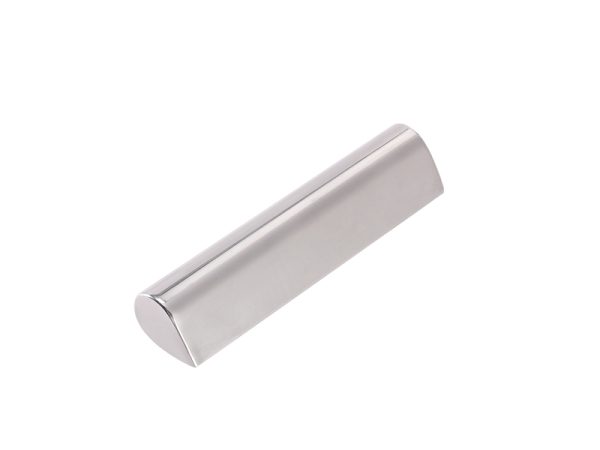

The magnet bar is composed of magnet and metal spacer alternately embedded in a stainless steel tube.
The magnetic peak force on bar surface can attract tiny iron impurities or weak magnetic impurities in the filtered medium, it can be installed through the screw hole at both ends, which is widely used in food, medical, chemical and other industries.
1. Screw or external thread installation method is alternative.
2. Simple installation, long service life.
3. Teflon, sandblasting and other surface treatments is optional.
4. The water drop shape is much more conducive to the impurities attraction.
| Item | Diameter | Surface Strength(Gs) | Tw (℃) | Length | Tube material |
| NDO-25 | 25 | 8000-12000 | Regular: 80℃,100℃ Optinal: 120℃，150℃，180℃，200℃ | max 2000mm | Regular: 304,316, 316L |
